INTAG 500 EU OM UHF G2IM BLACK

$5.88
Per Unit Price
Description INTAG 500 EU OM UHF is a heavy-duty on-metal RAIN RFID transponder designed for tracking metal assets and equipment in demanding industrial environments. This specialized 55 mm disc tag...

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: Many In Stock
Sku: 10019
Categories: RFID-TAGS-MENU
Product Type:
Vendor: HID
Tags:
Need a custom solution? For personalized minimum order quantities, encoding services, branded labels, recurring orders, or special project pricing, get in touch with our sales team at sales@rfidgpt.com.au
The Minimum Order Quantity is 750
Total Price: $4,410.00
⚠️ Minimum order quantity is 750.
Request a Quote

Description

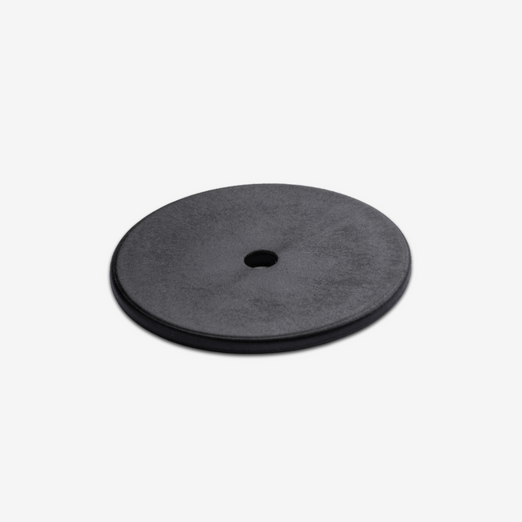

INTAG 500 EU OM UHF is a heavy-duty on-metal RAIN RFID transponder designed for tracking metal assets and equipment in demanding industrial environments. This specialized 55 mm disc tag with integrated spacer delivers reliable performance on metallic surfaces with read ranges up to 3 meters and complies with European ETSI standards.

Purpose

Specifically engineered for tracking metal containers, equipment, and assets in harsh industrial environments where standard RFID tags perform poorly. The on-metal design ensures consistent performance when mounted directly on metal surfaces, making it ideal for tracking metal tools, containers, vehicles, and industrial equipment.

Key Features & Benefits

  • On-metal functionality with integrated spacer for optimal performance on metallic surfaces

  • Superior durability with IP68 and IP69K rating for extreme wash-down environments

  • Extended read range up to 9.8 ft (3 m) even when mounted on metal

  • Enhanced 55 mm diameter with 13 mm spacer height for improved RF performance

  • High-temperature tolerance up to 284°F (140°C)

  • Exceptional resistance to chemicals, shock, and vibration

  • Pre-drilled mounting holes for secure attachment

  • UV resistant and flame resistant

  • EPC Global Class 1 Gen 2 compliant for global interoperability

Technical Specifications

  • Base Model Number: 6E5185-310
  • Operating Frequency: 865–868 MHz (ETSI – European UHF band)
  • Chip Vendor: Impinj
  • Chip Name: G2IM
  • Memory Type: 640-bit EEPROM (96-bit TID, 256-bit EPC)
  • Power Source: Passive
  • Form Factor: Rigid Disc Tag with Spacer
  • Read Range: Up to 9.8 ft (3 m), dependent on reader and environment
  • Anti-collision: Yes

Additional Specifications

  • Dimensions: Ø 2.17 x 0.51 in (Ø 55 x 13 mm)
  • Mounting Method: Embed, glue, screw
  • Fixation Hole Size: Ø 0.20 in (5.2 ± 0.3 mm)
  • Affixes To: Metal, glass, plastic, wood
  • Housing Material: PPA Polyphthalamide [ISO 1874: PA6T/6I-GF50]
  • Color: Black
  • Weight: 1.27 oz (36 g)
  • Water Resistance: IP68, IP69K, 176°F (80°C), 100 bar, 30 sec, 16 l/min
  • Withstands Exposure To: Fuel B, oil, petroleum, vegetable oil
  • UV Resistant: ISO 4892-2
  • Flame Resistant: UL94-HB (not applicable for spacer)
  • Food Compatible: Directive 02/72/EC
  • Vibration Resistance: IEC 68.2.6 [10 g, 10–2000 Hz, 3 axis, 2.5 h]
  • Shock Resistance: IEC 60068-2-27:2008 [40 g, 18 ms, 6 axis, 2000 times]
  • Drop Test: 100 x 5.9 ft (1.8 m)
  • Axial / Radial Force: 800 N / 500 N, 10 sec
  • Storage Temperature: -40° to +194°F (-40° to +90°C), 1000 h
  • Operating Temperature: -40° to +185°F (-40° to +85°C)
  • Temperature Shock / Fatigue: -40° to +194°F (-40° to +90°C), 50 cycles of 5 min with 30 sec transition
  • Peak Temperature: 284°F (140°C), 100 h
  • Box Size: 50 pcs
  • Warranty: 2 Years

Certifications

  • ISO 18000-6C compliant
  • EPC Global Class 1 Gen 2 compliant
  • UL94-HB flame resistant (not applicable for spacer)
  • Food compatible (Directive 02/72/EC)
  • UV resistant (ISO 4892-2)

Common Applications

  • Metal container tracking and management
  • Metal tool and equipment identification
  • Vehicle and heavy machinery tracking
  • Industrial asset tracking on metal surfaces
  • Metal returnable transport items (RTIs) management
  • Manufacturing process control for metal components
  • Mining equipment identification and tracking
  • Metal equipment maintenance management
  • Industrial laundry operations with metal carts
  • High-value metal asset inventory control
