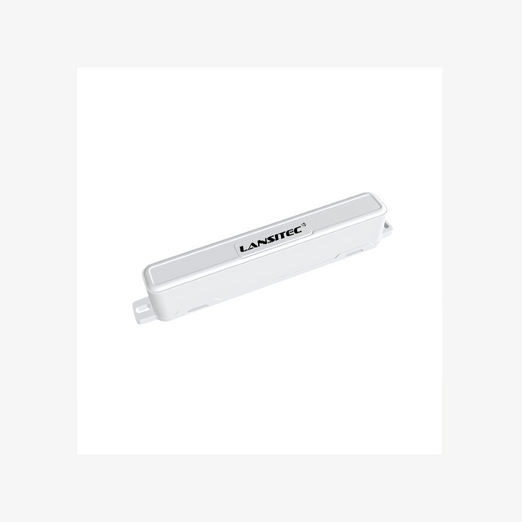

UWB Container Tracker with BLE & GNSS

$200.00
Per Unit Price
Description: A high-precision UWB and LoRaWAN-enabled tracker built for accurate indoor and outdoor asset tracking. Purpose: Designed to monitor the position of containers, equipment, personnel, and vehicles using ultra-wideband distance...

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: Many In Stock
Sku: 10130
Categories: CELLULAR-&-SATELLITE-TAGS , Lansitec
Product Type:
Vendor: Lansitec
Tags:
Need a custom solution? For personalized minimum order quantities, encoding services, branded labels, recurring orders, or special project pricing, get in touch with our sales team at sales@rfidgpt.com.au
The Minimum Order Quantity is 1
Total Price: $200.00
⚠️ Minimum order quantity is 1.
Request a Quote

Description:

A high-precision UWB and LoRaWAN-enabled tracker built for accurate indoor and outdoor asset tracking.

 Purpose: Designed to monitor the position of containers, equipment, personnel, and vehicles using ultra-wideband distance measurements with GNSS support.

 Key Features and Benefits:

  • 10 cm indoor positioning accuracy using UWB

  • Supports geo-fencing and anchor-based asset management

  • Adjustable report intervals and wide temperature tolerance

  • Over-the-air firmware updates via Bluetooth

  • Rugged IP68-rated housing for industrial environments

  • Long battery life with multiple deployment options

Effective in public safety, factory floors, and logistics

Technical Specifications

  • Bluetooth Protocols: Bluetooth 5.0, iBeacon, Eddystone, private

  • Bluetooth TX Power: -20 to +4 dBm (configurable in 4 dB steps)
  • Bluetooth Sensitivity: -96 dBm
  • Cellular (Cat-1) Bands:
    North America: B2/B4/B5/B12/B13/B66
    Europe/Africa: B1/B3/B5/B7/B8/B20
    China/India: B1/B3/B5/B8
    Latin America: B2/B3/B4/B5/B7/B8/B28/B66
  • TTD Support: China/India only (Bands B34/B38/B39/B40/B41)
  • SIM: Nano or eSIM
  • Network Protocols: MQTT, HTTP(S), TCP, UDP
  • GNSS Systems: BDS, GPS, GLONASS
  • GNSS Accuracy: <2.5m CEP
  • GNSS Cold Start Time: 30–60 seconds
  • AGPS: Supported
  • Dimensions: 198 × 28 × 33 mm
  • Weight: 130g
  • Ingress Protection: IP68
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -10°C to +30°C
  • Operating Humidity: 0%–95% (non-condensing)
  • Housing Material: PC and ABS
  • PCB Coating: Waterproof
  • Battery: 2 × Li/SOCI2 4000mAh
  • GNSS Reporting (interval >10 min): ~11,000 times
  • Bluetooth Positioning Events: ~24,000
  • Standby Current: 25μA
  • Max Current: 200mA
  • GNSS Position Report Interval: 5s × n (1 to 65536)
  • Heartbeat Report Interval: 30s × n (1 to 65536)
  • Magnetic Reed Switch: Supported
  • Temperature Sensor (optional): -40°C to +85°C, ±5°C accuracy, 0.25°C resolution
  • NFC Tag: 1KB
  • FOTA via Bluetooth: Supported
  • 3D Accelerometer: Supported
  • Movement Duration Detection: Supported
  • Door Open/Close Detection: Supported
  • Vibration/Shock Detection: Supported
  • Tamper Detection: Supported
  • Asset Management via Bluetooth Tags: Supported
  • Offline GNSS Cache: Up to 40 positions
  • Magnetic Power Switch Enable/Disable: Supported
  • Ordering Information: The Cat-1 Container Tracker is available under part number 100-00C11, with support for Bluetooth 5.0, GNSS, Cat-1 cellular networks, magnetic switch, 2×4000mAh batteries, and IP68 housing in a 205×31×26 mm form factor.

Common Applications

  • Container Tracker: Monitor location and detect removal in real time
  • Transit Case Tracking: Track indoor/outdoor movement and Bluetooth-tagged contents
  • Machine Status Monitor: Measure vibration duration, speed threshold exceedance, and position for critical machinery
